BCW Treatments Ltd on Innovation Drive in Burnley is an aluminium anodising facility opened in early 2015 to provide a full service to companies using the subcontract machining services of BCW Manufacturing Group’s machine shops on the same industrial estate.
Anodising is carried out in a Galvatek automated finishing line supplied by Turbex, which was deemed to be the best all-round package of three alternatives considered. Currently, an average of 2,600 square metres of product per week are finished across more than 240 part lines.
One of BCW’s automotive contracts involves the production of aluminium components mainly from A365 castings, 6060 extrusion, superplastic 5083, and 5754 sheet for a premium automotive customer in the UK specialising in manufacturing luxury sports cars and grand tourers.
More recently, the subcontractor has received further business from another prestigious UK automotive customer that produces high performance 4×4’s and special operations vehicles. The work will start at the end of 2018 and entail the installation in an adjacent factory of a line for passivating components as a corrosion resistant pretreatment.
Enquiries have also been received for finishing lightweight components for aircraft, such as cabin seating, and for electric cars, hybrids, amphibious vehicles and lorries. Consequently, by the end of the decade, the firm is destined to become a major force in component finishing in the north of England.

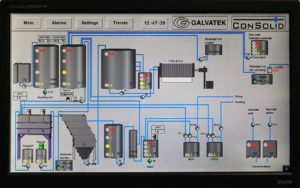

The waste water treatment plant control system.
Dr Andrew Wilson, managing director of BCW Treatments explained, “Although more than a century old, modern anodising is an exacting discipline requiring extremely close control to achieve the highest quality and even more importantly the correct film properties.
“Some manufacturers’ car parts are adhesively joined rather than welded and a nominal thickness of the anodic layer of between two and 10 microns is required, above which there is a risk of components pulling apart under stress. A tolerance band of four to six microns is achieved in the Turbex line, so precise is the process.”
An enterprise resource planning (ERP) system drives the finishing process in Burnley, raising each manufacturing order and triggering the issue of material. The line’s control system learns which aluminium products are mounted on which universal or part-specific jig by scanning the manufacturing order. Once it knows the part number, the correct program is automatically selected.
There are four load/unload stations at one end of the line, where components are loaded onto flight bars that progress to a buffer station from where they are picked up by one of two overhead transporters and dipped into 15 tanks sequentially. Up to five jobs can be processed simultaneously in the line.
Automatic dosing stations are provided for metered dosing of chemicals into several of the tanks, the quantity being worked out automatically according to the amount of surface area to be anodised on each flight bar. The working environment is clean and fume-free, as each tank is hermetically sealed and the lid is not opened until a transporter is directly above it. Positive pressure pulls the fumes through the handling system and extracts them to a scrubbing unit.
After processing, flight bars are returned to four load/unload stations adjacent to the loading area and the test pieces are taken away for analysis, which includes pull and shear tests after adhesive has been applied. Following each successful test, the ERP system is advised that the components are ready to deliver to the customer.

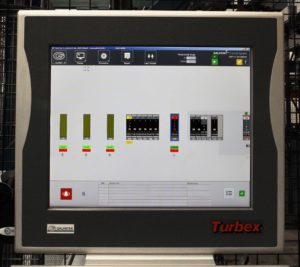

The Turbex line control.
The anodising sequence
As a conveyor is not involved in transporting flight bars around the system, the anodising process starts in the centre of the line and progresses initially away from the load/unload stations. Alkaline degrease takes up to one hour in the first tank for the most soiled castings and the solution is rinsed off in town water in the next two tanks, the water being recycled between the second and third stage.
Tank 4 is a chemical etch using sodium hydroxide to remove pre-existing aluminium oxide from the surface of components. Immersion time is controlled to avoid unduly changing of the geometry of the components. It also precludes the need to plug holes, resulting in a cost saving and eliminating the risk of parts being returned by the customer if plugs are inadvertently left in at the time of delivery.
An eco-rinse cycle in town water is performed in the next three tanks, again with recycling between the stages. The following process, which takes place at the far end of the line in tank 8, is the removal in a mix of nitric acid and hydrofluoric acid of alloying elements on the surface of components, especially of castings, that remain after chemical etching. Two further eco-rinse immersions in tanks 9 and 10 brings the pre-treatment to a close, by which time the components have travelled back past the centre tank towards the load/unload stations.
The actual anodising stage of the process is in tank 11, which contains sulphuric acid, and lasts between eight and 10 minutes, during which time a nominal 4 to 6 microns film thickness is deposited. An ecological feature of the equipment is continuous dosing of the acid, instead of recycling the fluid when the aluminium content reaches say 20 grams per litre. Avoidance of waste is made possible by employing a pump to recirculate the fluid through a retardation unit, where the aluminium is filtered out.
A clean rinse in three successive tanks containing deionised water, which is produced locally within the line, ends with an ultra-clean rinse to ensure that conductivity is less than 200 microsiemens.
The last stage, prior to the flight bar being taken back to the unload station, is hydrothermal sealing at 96°C in a proprietary chemical blend. Reserved for high-end applications and involving 30-micron particulate filtration, the process seals microscopically small pores created on the surface of components as a result of dielectric breakdown during anodising.
